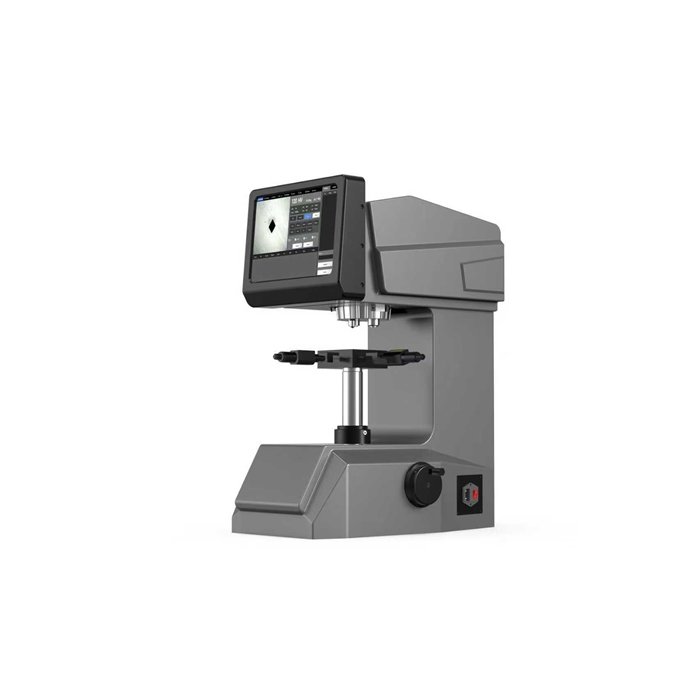

Product name：Intelligent Digital Micro Vickers Hardness Tester
Product model：10MHVS-5/10/30/50ZPC
Product feature：
1.This instrument is a new generation of Vickers hardness tester. It adopts the combination of industrial tablet computer and hardness tester. All parameters required for testing are selected on the tablet computer. The touch screen is convenient and quick to operate, and the display is clear and intuitive. The built-in CCD image acquisition system can directly display the dynamic indentation image on the tablet computer, lock the image and automatically measure the Vickers hardness value, with high measurement accuracy, stable performance and avoiding human operation error. Hardness tester function is complete, with the domestic advanced level.
2.The hardness tester and computer integrated design, with all the functions of the computer, and can be connected to the display, printer and other output devices.
3.It has 2 objective lenses to participate in the measurement, and the objective lens and the indenter are automatically identified and switched automatically.
4.The lifting screw adopts a worm gear structure, and the transmission is stable.
5.The load/hold/unload process is automated.
6.Built-in CCD image automatic measurement system, the indentation display is clear and intuitive, and the hardness value is automatically measured.
7.It has the function of hardness scale conversion, which can be converted between each hardness scale.
8.Automatically record measurement data, generate hardness-depth curves, and save them as WORD documents.
9.A digital display cross test table is more accurate.
Application scope：
Suitable for quenching, quenching and tempering, annealing, chilled castings, malleable castings, hard alloy steel, aluminum alloy, copper alloy, bearing steel and other hardness determination.
Technical parameter：

Standard configuration：
