Brinell hardness tester

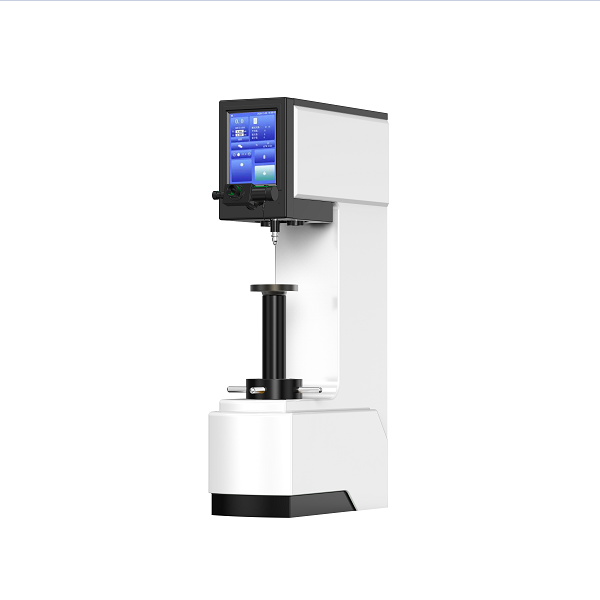

HBS-3000 Brinell Hardnes Tester
HBS-3000 Brinell Hardnes Tester
HBS-3000 Brinell Hardnes Tester HBS-3000 Brinell Hardnes Tester HBS-3000 Brinell Hardnes Tester

HBS-3000 Brinell Hardnes Tester

HBS-3000 Brinell Hardnes Tester

Details : Product Introduction

HBS-3000 digital touch screen Brinell hardness tester is a precision mechanical structure and computer control closed-loop system of mechanical and electrical integration products, the instrument canceled the weights, the use of electric loading and unloading test force, by 0.5 ‰ precision pressure sensor feedback, CPU Control and can test the loss of the test force for automatic compensation. Indentation can be measured directly on the instrument by measuring micro-eyepiece, on the big screen can be more intuitive to show the test force, indentation length, load time, the number of measurements, conversion scale, date and time, as long as the measurement of indentation Button, you can automatically calculate the hardness value and display on the screen. The data results can be saved through the table view, or through the built-in printer output.

Application scope

It is suitable for the determination of the hardness of cast iron, steel, nonferrous metal and soft alloy. It is also suitable for the determination of the hardness of some nonmetallic materials such as hard plastic and bakelite.

Measurement Range

62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N力)

Hardness testing range

8~650HBW

Hardness Read

digital touch screen LCD read value

data output

Built-in printer

Max. height of specimen

280mm

Head center to the wall distance

150mm

power supply

AC220V50Hz

Carried Standard

ISO 6506ASTM E10-12JIS Z2243GB/T 231.2

Dimension

230*515*920mm

Weight

130KG
